Section

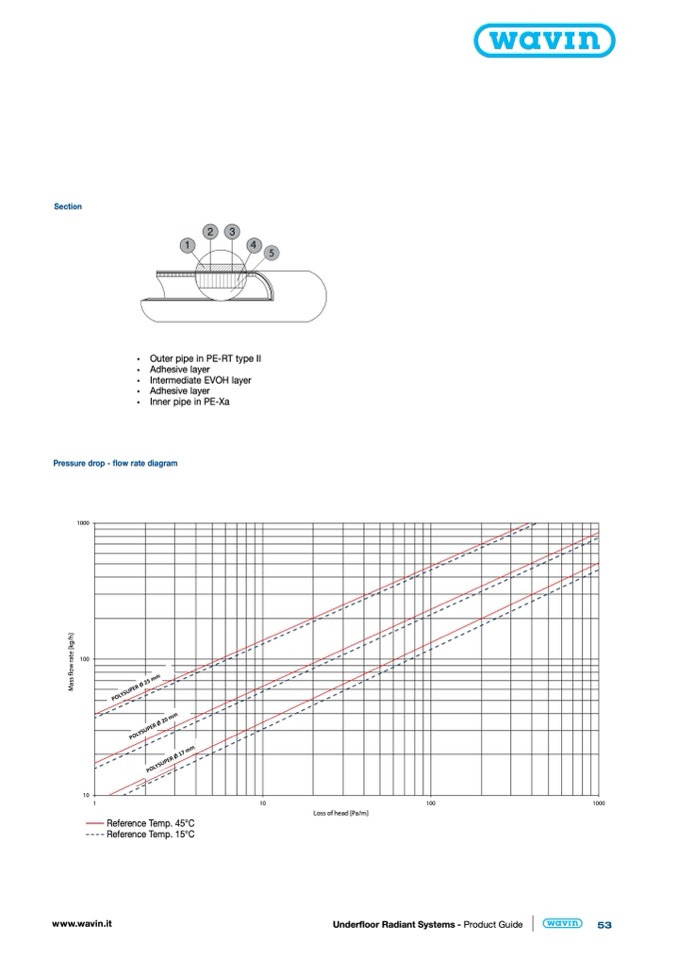

Pressure drop - flow rate diagram
• Outer pipe in PE-RT type II
• Adhesive layer
• Intermediate EVOH layer
• Adhesive layer
• Inner pipe in PE-Xa
1000
100
10
1
10
100
1000
Reference Temp. 45°C
Reference Temp. 15°C
Loss of head [Pa/m]
M
a
s
s
f
l
o
w
r
a
t
e
[
k
g
/
h
]
