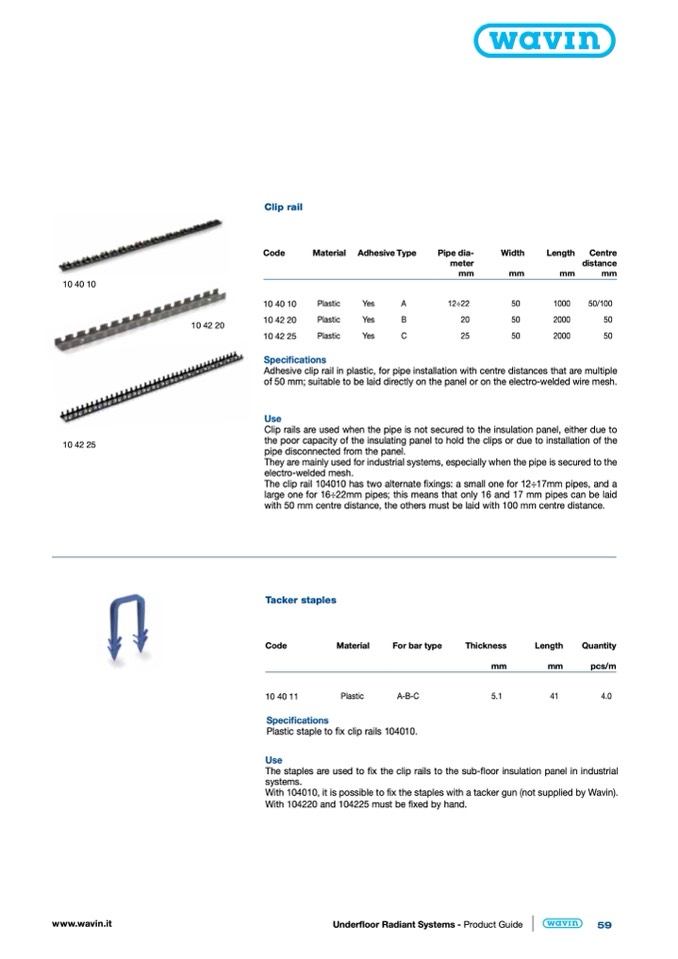

10 40 10

10 42 25

Adhesive clip rail in plastic, for pipe installation with centre distances that are multiple

of 50 mm; suitable to be laid directly on the panel or on the electro-welded wire mesh.

Use

Clip rails are used when the pipe is not secured to the insulation panel, either due to

the poor capacity of the insulating panel to hold the clips or due to installation of the

pipe disconnected from the panel.

They are mainly used for industrial systems, especially when the pipe is secured to the

electro-welded mesh.

The clip rail 104010 has two alternate fixings: a small one for 12÷17mm pipes, and a

large one for 16÷22mm pipes; this means that only 16 and 17 mm pipes can be laid

with 50 mm centre distance, the others must be laid with 100 mm centre distance.

10 42 20

12÷22

50

20

50

25

50

1000

50/100

2000

50

2000

50

Clip rail

Code

10 40 10

10 42 20

10 42 25

Material

Plastic

Plastic

Plastic

Adhesive Type

Yes

A

Yes

B

Yes

C

Pipe dia-

Width

Length

Centre

meter

distance

mm

mm

mm

mm

Specifications

www.wavin.it

Underfloor Radiant Systems - Product Guide

59

Tacker staples

Code

Material

For bar type

10 40 11

Plastic

A-B-C

Specifications

Plastic staple to fix clip rails 104010.

Use

Thickness

Length

mm

mm

5.1

41

Quantity

pcs/m

4.0

The staples are used to fix the clip rails to the sub-floor insulation panel in industrial

systems.

With 104010, it is possible to fix the staples with a tacker gun (not supplied by Wavin).

With 104220 and 104225 must be fixed by hand.
