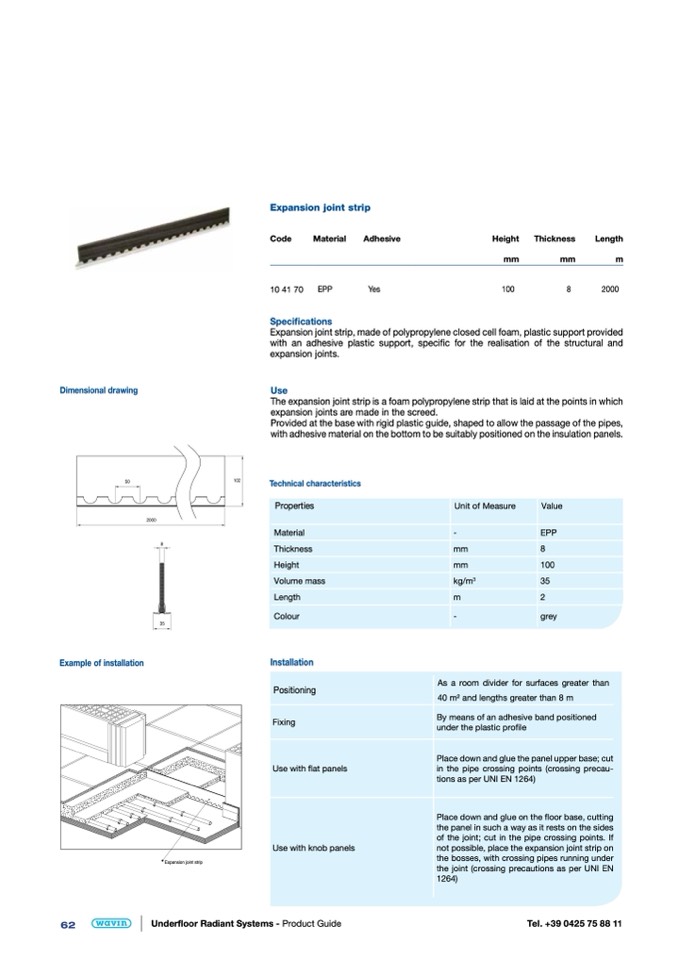

Dimensional drawing

Expansion joint strip

Code

Material

Adhesive

Height

Thickness

Length

mm

mm

m

10 41 70

EPP

Yes

100

8

2000

Specifications

Expansion joint strip, made of polypropylene closed cell foam, plastic support provided

with an adhesive plastic support, specific for the realisation of the structural and

expansion joints.

Use

The expansion joint strip is a foam polypropylene strip that is laid at the points in which

expansion joints are made in the screed.

Provided at the base with rigid plastic guide, shaped to allow the passage of the pipes,

with adhesive material on the bottom to be suitably positioned on the insulation panels.

Example of installation

Technical characteristics

Properties

Material

Thickness

Height

Volume mass

Length

Colour

Installation

Positioning

Fixing

Use with flat panels

Use with knob panels

Unit of Measure

Value

-

EPP

mm

8

mm

100

kg/m

3

35

m

2

-

grey

As a room divider for surfaces greater than

40 m2 and lengths greater than 8 m

By means of an adhesive band positioned

under the plastic profile

Place down and glue the panel upper base; cut

in the pipe crossing points (crossing precau-

tions as per UNI EN 1264)

Place down and glue on the floor base, cutting

the panel in such a way as it rests on the sides

of the joint; cut in the pipe crossing points. If

not possible, place the expansion joint strip on

the bosses, with crossing pipes running under

the joint (crossing precautions as per UNI EN

1264)

62

Underfloor Radiant Systems - Product Guide

Tel. +39 0425 75 88 11

Expansion joint strip
