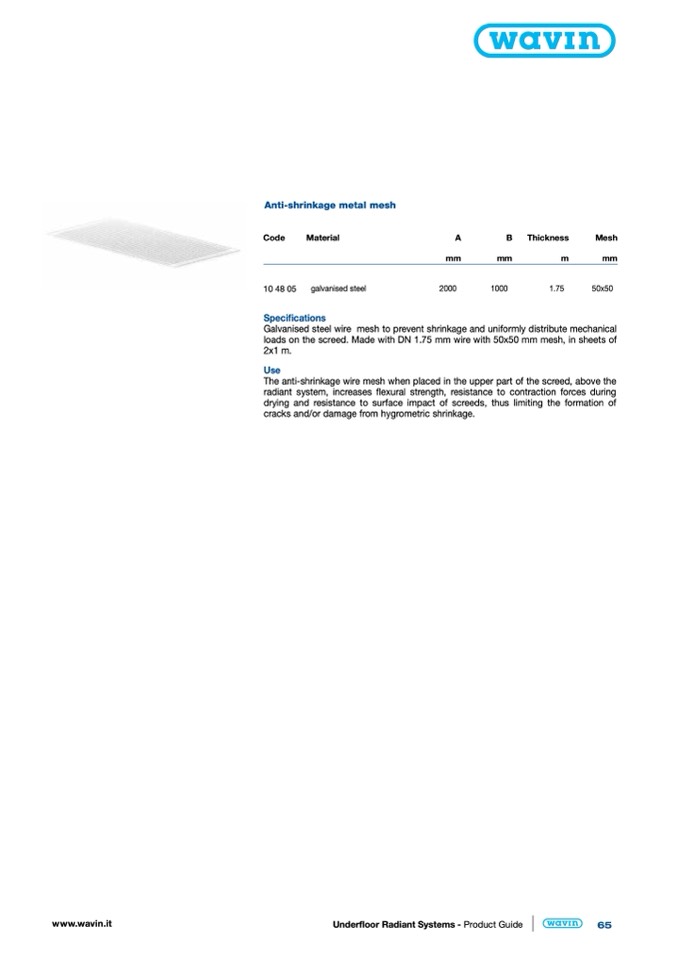

Anti-shrinkage metal mesh
Code
Material
A
B
mm
mm
Thickness
Mesh
m
mm
www.wavin.it
Underfloor Radiant Systems - Product Guide
65
10 48 05
galvanised steel
2000
1000
1.75
50x50
Specifications
Galvanised steel wire mesh to prevent shrinkage and uniformly distribute mechanical
loads on the screed. Made with DN 1.75 mm wire with 50x50 mm mesh, in sheets of
2x1 m.
Use
The anti-shrinkage wire mesh when placed in the upper part of the screed, above the
radiant system, increases flexural strength, resistance to contraction forces during
drying and resistance to surface impact of screeds, thus limiting the formation of
cracks and/or damage from hygrometric shrinkage.
