Dimensional drawing
Vapour-barrier polyethylene sheet, 0.92 g/cm3 of density, 200 μm of thickness,
supplied in centre folded rolls of 3 m in overall width and 66 m in length.
According to UNI 11371, it is necessary to lay a vapor barrier under the insulating
panels of a screeds with radiant systems and wooden surface coatings.
Use
The polyethylene sheet has the function of separating the various layers of material:
•
In residential systems, if properly placed overlapping the edges and sealing
them with adhesive tape, it is a barrier to vapour or rising humidity. According to
UNI 11371, it is necessary to lay a vapor barrier under the insulating panels of a
screeds with radiant systems and wooden surface coatings.
•
In industrial systems, if properly placed on the lean concrete overlapping the
edges and sealing them with adhesive tape, it is a barrier to rising humidity,
although it is always a good idea to evaluate the use of bituminous membrane

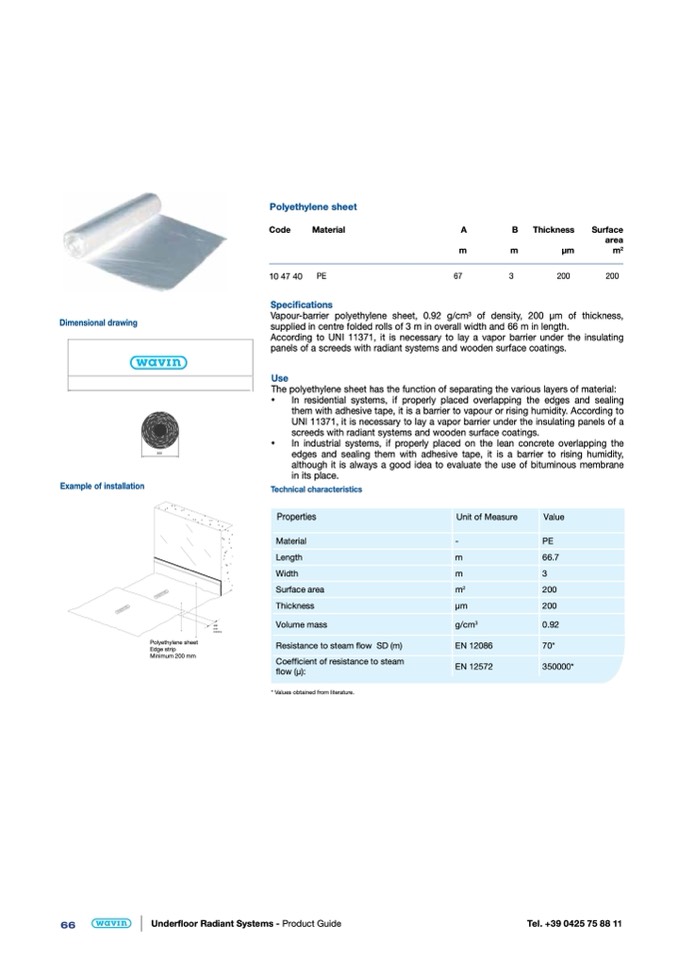

Polyethylene sheet
Code
Material
10 47 40
PE
Specifications
A
B
Thickness
Surface
area
m
m
μm
m
2
67
3
200
200
Example of installation
in its place.
Technical characteristics
Properties
Material
Length
Width
Surface area
Thickness
Volume mass
Resistance to steam flow SD (m)
Coefficient of resistance to steam
flow (μ):
* Values obtained from literature.
300
200
mm
minimo
Unit of Measure
-
m
m
m
2
μm
g/cm
3
EN 12086
EN 12572
Value
PE
66.7
3
200
200
0.92
70*
350000*
Polyethylene sheet
Edge strip
Minimum 200 mm
66
