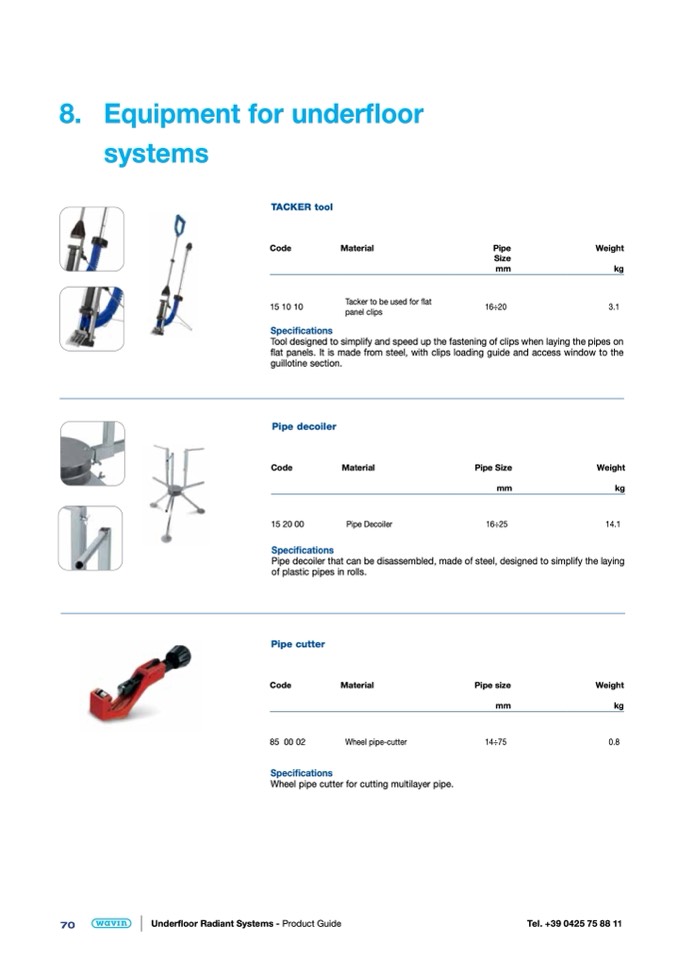

8. Equipment for underfloor

systems

TACKER tool

Code

15 10 10

Specifications

Material

Tacker to be used for flat

panel clips

Pipe

Weight

Size

mm

kg

16÷20

3.1

Tool designed to simplify and speed up the fastening of clips when laying the pipes on

flat panels. It is made from steel, with clips loading guide and access window to the

guillotine section.

Pipe decoiler

Code

Material

Pipe Size

Weight

mm

kg

16÷25

14.1

Pipe decoiler that can be disassembled, made of steel, designed to simplify the laying

15 20 00

Pipe Decoiler

Specifications

of plastic pipes in rolls.

Pipe cutter

Code

Material

85 00 02

Wheel pipe-cutter

Specifications

Wheel pipe cutter for cutting multilayer pipe.

Pipe size

mm

14÷75

Weight

kg

0.8

70
