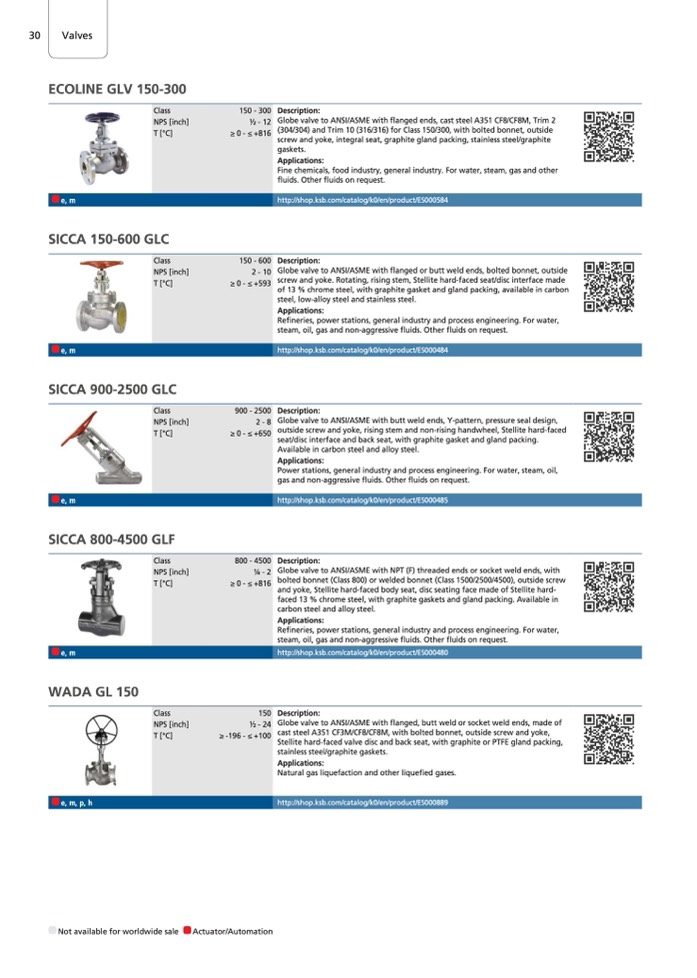

30

Valves

Valves

ECOLINE GLV 150-300

Class

NPS [inch]

T [°C]

e, m

SICCA 150-600 GLC

Class

NPS [inch]

T [°C]

e, m

SICCA 900-2500 GLC

Class

NPS [inch]

T [°C]

e, m

SICCA 800-4500 GLF

e, m

WADA GL 150

e, m, p, h

Class

NPS [inch]

T [°C]

Class

NPS [inch]

T [°C]

150 - 300

1⁄2 - 12

≥ 0 - ≤ +816

150 - 600

2 - 10

≥ 0 - ≤ +593

900 - 2500

2- 8

≥ 0 - ≤ +650

800 - 4500

1⁄4- 2

≥ 0 - ≤ +816

150

1⁄2 - 24

≥ -196 - ≤ +100

Description:

Globe valve to ANSI/ASME with flanged ends, cast steel A351 CF8/CF8M, Trim 2

(304/304) and Trim 10 (316/316) for Class 150/300, with bolted bonnet, outside

screw and yoke, integral seat, graphite gland packing, stainless steel/graphite

gaskets.

Applications:

Fine chemicals, food industry, general industry. For water, steam, gas and other

fluids. Other fluids on request.

http://shop.ksb.com/catalog/k0/en/product/ES000584

Description:

Globe valve to ANSI/ASME with flanged or butt weld ends, bolted bonnet, outside

screw and yoke. Rotating, rising stem, Stellite hard-faced seat/disc interface made

of 13 % chrome steel, with graphite gasket and gland packing, available in carbon

steel, low-alloy steel and stainless steel.

Applications:

Refineries, power stations, general industry and process engineering. For water,

steam, oil, gas and non-aggressive fluids. Other fluids on request.

http://shop.ksb.com/catalog/k0/en/product/ES000484

Description:

Globe valve to ANSI/ASME with butt weld ends, Y-pattern, pressure seal design,

outside screw and yoke, rising stem and non-rising handwheel, Stellite hard-faced

seat/disc interface and back seat, with graphite gasket and gland packing.

Available in carbon steel and alloy steel.

Applications:

Power stations, general industry and process engineering. For water, steam, oil,

gas and non-aggressive fluids. Other fluids on request.

http://shop.ksb.com/catalog/k0/en/product/ES000485

Description:

Globe valve to ANSI/ASME with NPT (F) threaded ends or socket weld ends, with

bolted bonnet (Class 800) or welded bonnet (Class 1500/2500/4500), outside screw

and yoke, Stellite hard-faced body seat, disc seating face made of Stellite hard-

faced 13 % chrome steel, with graphite gaskets and gland packing. Available in

carbon steel and alloy steel.

Applications:

Refineries, power stations, general industry and process engineering. For water,

steam, oil, gas and non-aggressive fluids. Other fluids on request.

http://shop.ksb.com/catalog/k0/en/product/ES000480

Description:

Globe valve to ANSI/ASME with flanged, butt weld or socket weld ends, made of

cast steel A351 CF3M/CF8/CF8M, with bolted bonnet, outside screw and yoke,

Stellite hard-faced valve disc and back seat, with graphite or PTFE gland packing,

stainless steel/graphite gaskets.

Applications:

Natural gas liquefaction and other liquefied gases.

http://shop.ksb.com/catalog/k0/en/product/ES000889

Not available for worldwide sale

Actuator/Automation
