Valves

31

Valves

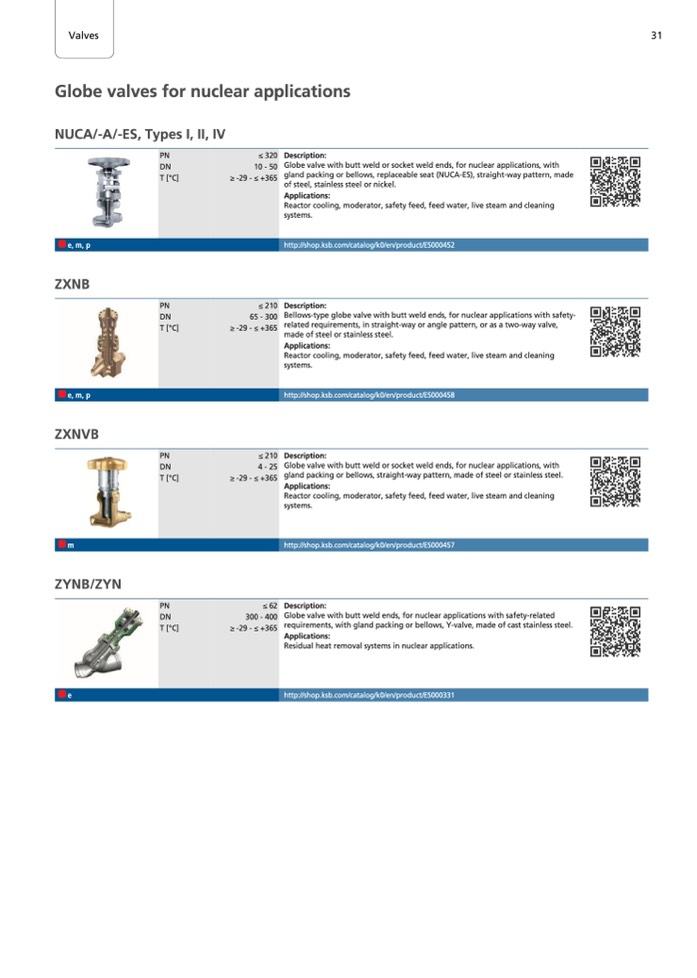

Globe valves for nuclear applications

NUCA/-A/-ES, Types I, II, IV

e, m, p

ZXNB

e, m, p

ZXNVB

m

ZYNB/ZYN

e

PN

DN

T [°C]

PN

DN

T [°C]

PN

DN

T [°C]

PN

DN

T [°C]

≤ 320

10 - 50

≥ -29 - ≤ +365

≤ 210

65 - 300

≥ -29 - ≤ +365

≤ 210

4 - 25

≥ -29 - ≤ +365

≤ 62

300 - 400

≥ -29 - ≤ +365

Description:

Globe valve with butt weld or socket weld ends, for nuclear applications, with

gland packing or bellows, replaceable seat (NUCA-ES), straight-way pattern, made

of steel, stainless steel or nickel.

Applications:

Reactor cooling, moderator, safety feed, feed water, live steam and cleaning

systems.

http://shop.ksb.com/catalog/k0/en/product/ES000452

Description:

Bellows-type globe valve with butt weld ends, for nuclear applications with safety-

related requirements, in straight-way or angle pattern, or as a two-way valve,

made of steel or stainless steel.

Applications:

Reactor cooling, moderator, safety feed, feed water, live steam and cleaning

systems.

http://shop.ksb.com/catalog/k0/en/product/ES000458

Description:

Globe valve with butt weld or socket weld ends, for nuclear applications, with

gland packing or bellows, straight-way pattern, made of steel or stainless steel.

Applications:

Reactor cooling, moderator, safety feed, feed water, live steam and cleaning

systems.

http://shop.ksb.com/catalog/k0/en/product/ES000457

Description:

Globe valve with butt weld ends, for nuclear applications with safety-related

requirements, with gland packing or bellows, Y-valve, made of cast stainless steel.

Applications:

Residual heat removal systems in nuclear applications.

http://shop.ksb.com/catalog/k0/en/product/ES000331
