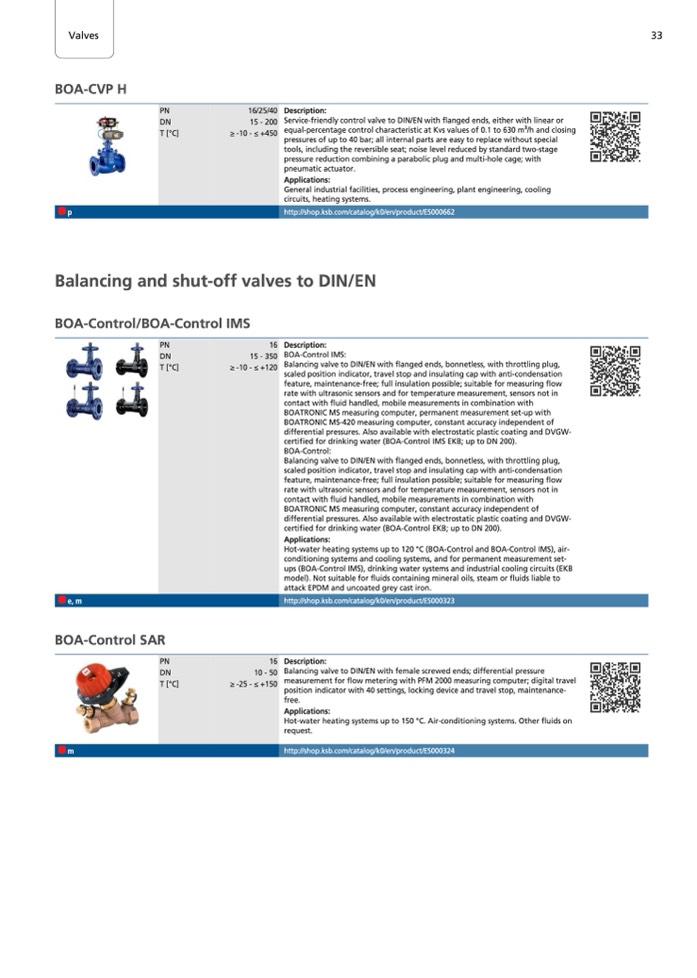

Valves
Valves
BOA-CVP H
p
33
e, m
BOA-Control SAR
m
PN
DN
T [°C]
16/25/40
15 - 200
≥ -10 - ≤ +450
Description:
Service-friendly control valve to DIN/EN with flanged ends, either with linear or
equal-percentage control characteristic at Kvs values of 0.1 to 630 m3/h and closing
pressures of up to 40 bar; all internal parts are easy to replace without special
tools, including the reversible seat; noise level reduced by standard two-stage
pressure reduction combining a parabolic plug and multi-hole cage; with
pneumatic actuator.
Applications:
General industrial facilities, process engineering, plant engineering, cooling
circuits, heating systems.
http://shop.ksb.com/catalog/k0/en/product/ES000662
Balancing and shut-off valves to DIN/EN
BOA-Control/BOA-Control IMS
PN
DN
T [°C]
16
15 - 350
≥ -10 - ≤ +120
Description:
BOA-Control IMS:
Balancing valve to DIN/EN with flanged ends, bonnetless, with throttling plug,
scaled position indicator, travel stop and insulating cap with anti-condensation
feature, maintenance-free; full insulation possible; suitable for measuring flow
rate with ultrasonic sensors and for temperature measurement, sensors not in
contact with fluid handled, mobile measurements in combination with
BOATRONIC MS measuring computer, permanent measurement set-up with
BOATRONIC MS-420 measuring computer, constant accuracy independent of
differential pressures. Also available with electrostatic plastic coating and DVGW-
certified for drinking water (BOA-Control IMS EKB; up to DN 200).
BOA-Control:
Balancing valve to DIN/EN with flanged ends, bonnetless, with throttling plug,
scaled position indicator, travel stop and insulating cap with anti-condensation
feature, maintenance-free; full insulation possible; suitable for measuring flow
rate with ultrasonic sensors and for temperature measurement, sensors not in
contact with fluid handled, mobile measurements in combination with
BOATRONIC MS measuring computer, constant accuracy independent of
differential pressures. Also available with electrostatic plastic coating and DVGW-
certified for drinking water (BOA-Control EKB; up to DN 200).
Applications:
Hot-water heating systems up to 120 °C (BOA-Control and BOA-Control IMS), air-
conditioning systems and cooling systems, and for permanent measurement set-
ups (BOA-Control IMS), drinking water systems and industrial cooling circuits (EKB
model). Not suitable for fluids containing mineral oils, steam or fluids liable to
attack EPDM and uncoated grey cast iron.
http://shop.ksb.com/catalog/k0/en/product/ES000323
Description:
Balancing valve to DIN/EN with female screwed ends; differential pressure
measurement for flow metering with PFM 2000 measuring computer; digital travel
position indicator with 40 settings, locking device and travel stop, maintenance-
free.
Applications:
Hot-water heating systems up to 150 °C. Air-conditioning systems. Other fluids on
request.
http://shop.ksb.com/catalog/k0/en/product/ES000324
PN
DN
T [°C]
16
10 - 50
≥ -25 - ≤ +150
