Valves
Valves

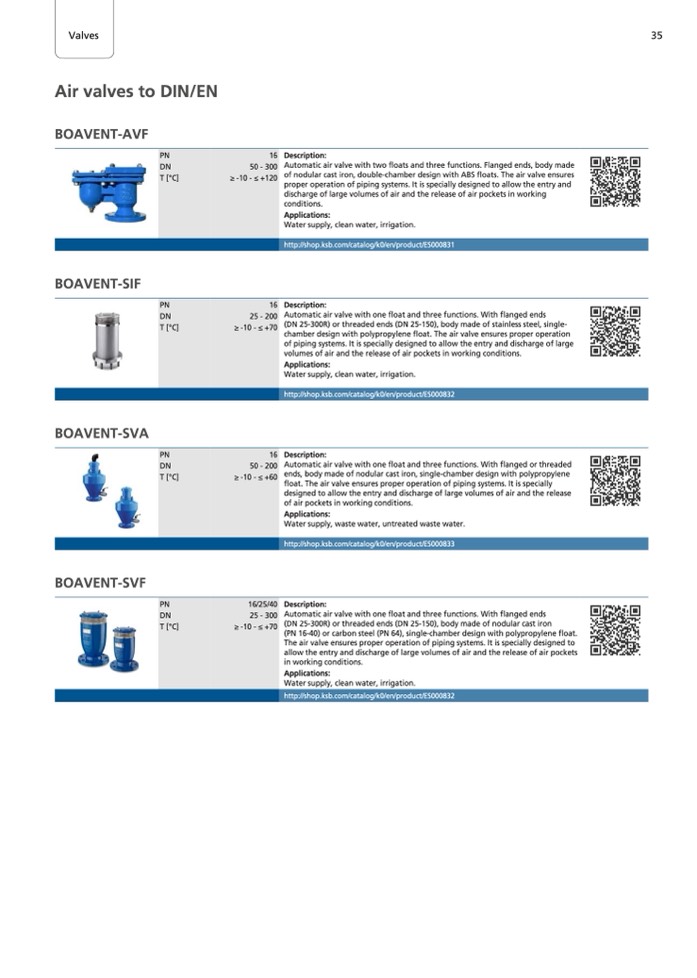

Air valves to DIN/EN
BOAVENT-AVF
35
BOAVENT-SIF
BOAVENT-SVA
BOAVENT-SVF
PN
DN
T [°C]
PN
DN
T [°C]
PN
DN
T [°C]
PN
DN
T [°C]
16
50 - 300
≥ -10 - ≤ +120
16
25 - 200
≥ -10 - ≤ +70
16
50 - 200
≥ -10 - ≤ +60
16/25/40
25 - 300
≥ -10 - ≤ +70
Description:
Automatic air valve with two floats and three functions. Flanged ends, body made
of nodular cast iron, double-chamber design with ABS floats. The air valve ensures
proper operation of piping systems. It is specially designed to allow the entry and
discharge of large volumes of air and the release of air pockets in working
conditions.
Applications:
Water supply, clean water, irrigation.
http://shop.ksb.com/catalog/k0/en/product/ES000831
Description:
Automatic air valve with one float and three functions. With flanged ends
(DN 25-300R) or threaded ends (DN 25-150), body made of stainless steel, single-
chamber design with polypropylene float. The air valve ensures proper operation
of piping systems. It is specially designed to allow the entry and discharge of large
volumes of air and the release of air pockets in working conditions.
Applications:
Water supply, clean water, irrigation.
http://shop.ksb.com/catalog/k0/en/product/ES000832
Description:
Automatic air valve with one float and three functions. With flanged or threaded
ends, body made of nodular cast iron, single-chamber design with polypropylene
float. The air valve ensures proper operation of piping systems. It is specially
designed to allow the entry and discharge of large volumes of air and the release
of air pockets in working conditions.
Applications:
Water supply, waste water, untreated waste water.
http://shop.ksb.com/catalog/k0/en/product/ES000833
Description:
Automatic air valve with one float and three functions. With flanged ends
(DN 25-300R) or threaded ends (DN 25-150), body made of nodular cast iron
(PN 16-40) or carbon steel (PN 64), single-chamber design with polypropylene float.
The air valve ensures proper operation of piping systems. It is specially designed to
allow the entry and discharge of large volumes of air and the release of air pockets
in working conditions.
Applications:
Water supply, clean water, irrigation.
http://shop.ksb.com/catalog/k0/en/product/ES000832
