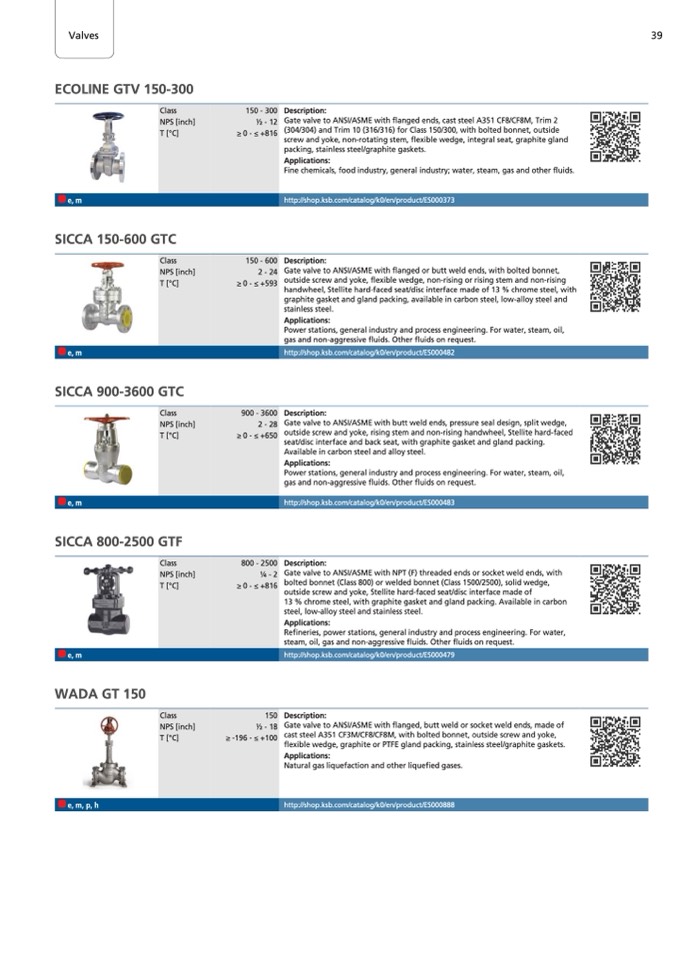

Valves

Valves

ECOLINE GTV 150-300

Class

NPS [inch]

T [°C]

e, m

SICCA 150-600 GTC

Class

NPS [inch]

T [°C]

e, m

SICCA 900-3600 GTC

Class

NPS [inch]

T [°C]

e, m

SICCA 800-2500 GTF

39

e, m

WADA GT 150

e, m, p, h

Class

NPS [inch]

T [°C]

Class

NPS [inch]

T [°C]

150 - 300

1⁄2 - 12

≥ 0 - ≤ +816

150 - 600

2 - 24

≥ 0 - ≤ +593

900 - 3600

2 - 28

≥ 0 - ≤ +650

800 - 2500

1⁄4- 2

≥ 0 - ≤ +816

150

1⁄2 - 18

≥ -196 - ≤ +100

Description:

Gate valve to ANSI/ASME with flanged ends, cast steel A351 CF8/CF8M, Trim 2

(304/304) and Trim 10 (316/316) for Class 150/300, with bolted bonnet, outside

screw and yoke, non-rotating stem, flexible wedge, integral seat, graphite gland

packing, stainless steel/graphite gaskets.

Applications:

Fine chemicals, food industry, general industry; water, steam, gas and other fluids.

http://shop.ksb.com/catalog/k0/en/product/ES000373

Description:

Gate valve to ANSI/ASME with flanged or butt weld ends, with bolted bonnet,

outside screw and yoke, flexible wedge, non‐rising or rising stem and non-rising

handwheel, Stellite hard-faced seat/disc interface made of 13 % chrome steel, with

graphite gasket and gland packing, available in carbon steel, low-alloy steel and

stainless steel.

Applications:

Power stations, general industry and process engineering. For water, steam, oil,

gas and non-aggressive fluids. Other fluids on request.

http://shop.ksb.com/catalog/k0/en/product/ES000482

Description:

Gate valve to ANSI/ASME with butt weld ends, pressure seal design, split wedge,

outside screw and yoke, rising stem and non-rising handwheel, Stellite hard-faced

seat/disc interface and back seat, with graphite gasket and gland packing.

Available in carbon steel and alloy steel.

Applications:

Power stations, general industry and process engineering. For water, steam, oil,

gas and non-aggressive fluids. Other fluids on request.

http://shop.ksb.com/catalog/k0/en/product/ES000483

Description:

Gate valve to ANSI/ASME with NPT (F) threaded ends or socket weld ends, with

bolted bonnet (Class 800) or welded bonnet (Class 1500/2500), solid wedge,

outside screw and yoke, Stellite hard-faced seat/disc interface made of

13 % chrome steel, with graphite gasket and gland packing. Available in carbon

steel, low-alloy steel and stainless steel.

Applications:

Refineries, power stations, general industry and process engineering. For water,

steam, oil, gas and non-aggressive fluids. Other fluids on request.

http://shop.ksb.com/catalog/k0/en/product/ES000479

Description:

Gate valve to ANSI/ASME with flanged, butt weld or socket weld ends, made of

cast steel A351 CF3M/CF8/CF8M, with bolted bonnet, outside screw and yoke,

flexible wedge, graphite or PTFE gland packing, stainless steel/graphite gaskets.

Applications:

Natural gas liquefaction and other liquefied gases.

http://shop.ksb.com/catalog/k0/en/product/ES000888
