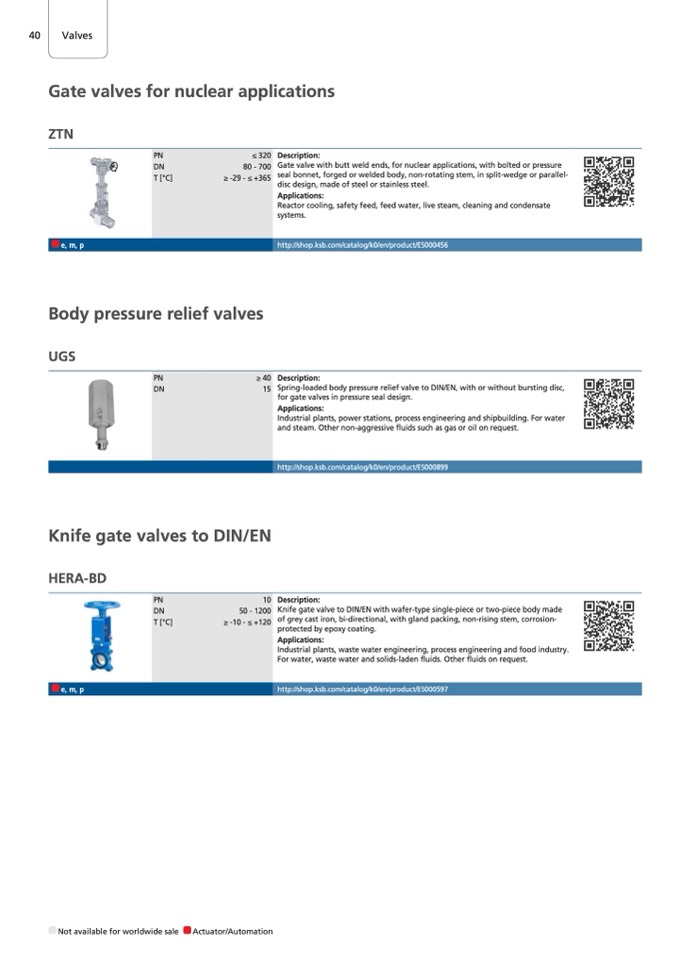

40

Valves

Valves

Gate valves for nuclear applications

ZTN

e, m, p

PN

DN

T [°C]

≤ 320

80 - 700

≥ -29 - ≤ +365

Description:

Gate valve with butt weld ends, for nuclear applications, with bolted or pressure

seal bonnet, forged or welded body, non-rotating stem, in split-wedge or parallel-

disc design, made of steel or stainless steel.

Applications:

Reactor cooling, safety feed, feed water, live steam, cleaning and condensate

systems.

http://shop.ksb.com/catalog/k0/en/product/ES000456

Description:

Spring-loaded body pressure relief valve to DIN/EN, with or without bursting disc,

for gate valves in pressure seal design.

Applications:

Industrial plants, power stations, process engineering and shipbuilding. For water

and steam. Other non-aggressive fluids such as gas or oil on request.

http://shop.ksb.com/catalog/k0/en/product/ES000899

Description:

Knife gate valve to DIN/EN with wafer-type single-piece or two-piece body made

of grey cast iron, bi-directional, with gland packing, non-rising stem, corrosion-

protected by epoxy coating.

Applications:

Industrial plants, waste water engineering, process engineering and food industry.

For water, waste water and solids-laden fluids. Other fluids on request.

http://shop.ksb.com/catalog/k0/en/product/ES000597

Body pressure relief valves

UGS

PN

≥ 40

DN

15

Knife gate valves to DIN/EN

HERA-BD

e, m, p

Not available for worldwide sale

Actuator/Automation

PN

DN

T [°C]

10

50 - 1200

≥ -10 - ≤ +120
