Valves
41
Valves

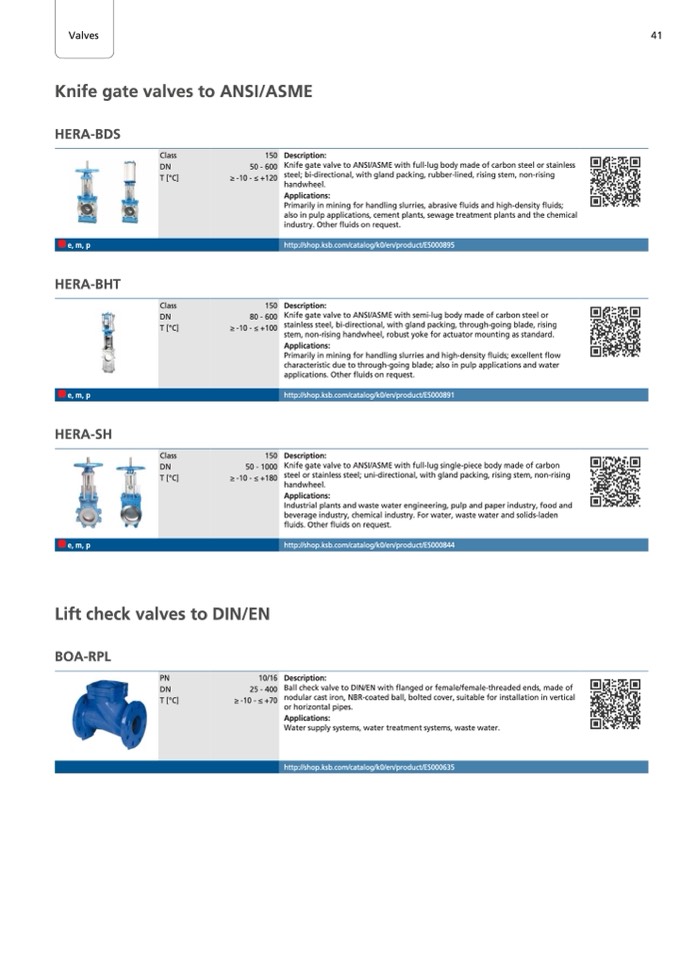

Knife gate valves to ANSI/ASME
HERA-BDS
e, m, p
HERA-BHT
e, m, p
HERA-SH
e, m, p
Class
DN
T [°C]
Class
DN
T [°C]
Class
DN
T [°C]
150
50 - 600
≥ -10 - ≤ +120
150
80 - 600
≥ -10 - ≤ +100
150
50 - 1000
≥ -10 - ≤ +180
Description:
Knife gate valve to ANSI/ASME with full-lug body made of carbon steel or stainless
steel; bi-directional, with gland packing, rubber-lined, rising stem, non-rising
handwheel.
Applications:
Primarily in mining for handling slurries, abrasive fluids and high-density fluids;
also in pulp applications, cement plants, sewage treatment plants and the chemical
industry. Other fluids on request.
http://shop.ksb.com/catalog/k0/en/product/ES000895
Description:
Knife gate valve to ANSI/ASME with semi-lug body made of carbon steel or
stainless steel, bi-directional, with gland packing, through-going blade, rising
stem, non-rising handwheel, robust yoke for actuator mounting as standard.
Applications:
Primarily in mining for handling slurries and high-density fluids; excellent flow
characteristic due to through-going blade; also in pulp applications and water
applications. Other fluids on request.
http://shop.ksb.com/catalog/k0/en/product/ES000891
Description:
Knife gate valve to ANSI/ASME with full-lug single-piece body made of carbon
steel or stainless steel; uni-directional, with gland packing, rising stem, non-rising
handwheel.
Applications:
Industrial plants and waste water engineering, pulp and paper industry, food and
beverage industry, chemical industry. For water, waste water and solids-laden
fluids. Other fluids on request.
http://shop.ksb.com/catalog/k0/en/product/ES000844
Description:
Ball check valve to DIN/EN with flanged or female/female-threaded ends, made of
nodular cast iron, NBR-coated ball, bolted cover, suitable for installation in vertical
or horizontal pipes.
Applications:
Water supply systems, water treatment systems, waste water.
http://shop.ksb.com/catalog/k0/en/product/ES000635
Lift check valves to DIN/EN
BOA-RPL
PN
DN
T [°C]
10/16
25 - 400
≥ -10 - ≤ +70
