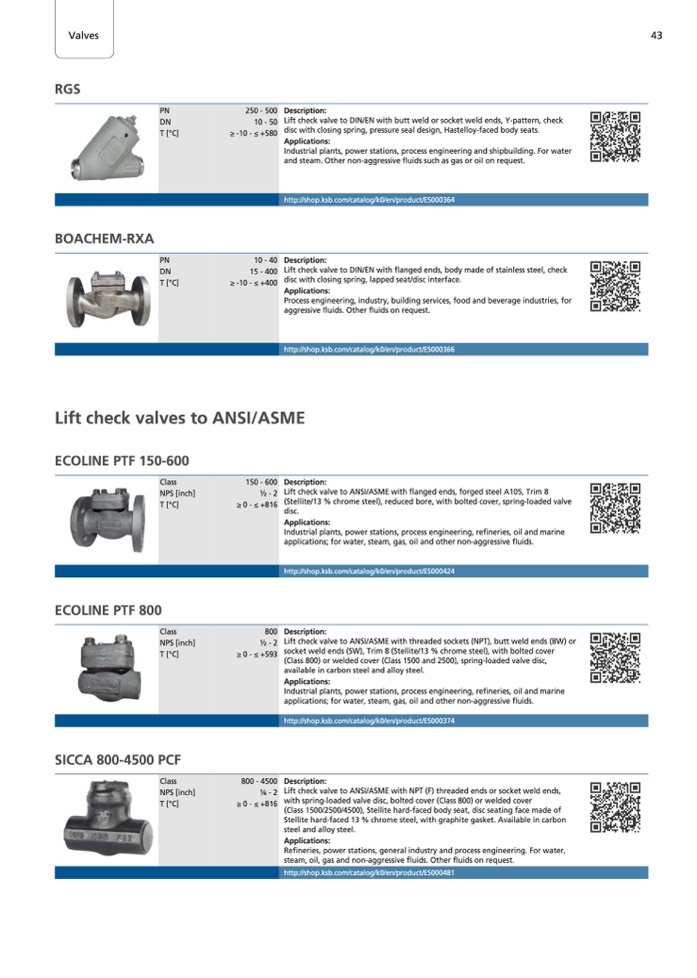

Valves
Valves
RGS
BOACHEM-RXA
43
PN
DN
T [°C]
PN
DN
T [°C]
250 - 500
10 - 50
≥ -10 - ≤ +580
10 - 40
15 - 400
≥ -10 - ≤ +400
Description:
Lift check valve to DIN/EN with butt weld or socket weld ends, Y-pattern, check
disc with closing spring, pressure seal design, Hastelloy-faced body seats.
Applications:
Industrial plants, power stations, process engineering and shipbuilding. For water
and steam. Other non-aggressive fluids such as gas or oil on request.
http://shop.ksb.com/catalog/k0/en/product/ES000364
Description:
Lift check valve to DIN/EN with flanged ends, body made of stainless steel, check
disc with closing spring, lapped seat/disc interface.
Applications:
Process engineering, industry, building services, food and beverage industries, for
aggressive fluids. Other fluids on request.
http://shop.ksb.com/catalog/k0/en/product/ES000366
Lift check valves to ANSI/ASME
ECOLINE PTF 150-600
Class
NPS [inch]
T [°C]
ECOLINE PTF 800
Class
NPS [inch]
T [°C]
SICCA 800-4500 PCF
Class
NPS [inch]
T [°C]
150
≥ 0 - ≤
≥ 0 - ≤
- 600
1⁄2- 2
+816
800
1⁄2- 2
+593
Description:
Lift check valve to ANSI/ASME with flanged ends, forged steel A105, Trim 8
(Stellite/13 % chrome steel), reduced bore, with bolted cover, spring-loaded valve
disc.
Applications:
Industrial plants, power stations, process engineering, refineries, oil and marine
applications; for water, steam, gas, oil and other non-aggressive fluids.
http://shop.ksb.com/catalog/k0/en/product/ES000424
Description:
Lift check valve to ANSI/ASME with threaded sockets (NPT), butt weld ends (BW) or
socket weld ends (SW), Trim 8 (Stellite/13 % chrome steel), with bolted cover
(Class 800) or welded cover (Class 1500 and 2500), spring-loaded valve disc,
available in carbon steel and alloy steel.
Applications:
Industrial plants, power stations, process engineering, refineries, oil and marine
applications; for water, steam, gas, oil and other non-aggressive fluids.
http://shop.ksb.com/catalog/k0/en/product/ES000374
Description:
Lift check valve to ANSI/ASME with NPT (F) threaded ends or socket weld ends,
with spring-loaded valve disc, bolted cover (Class 800) or welded cover
(Class 1500/2500/4500), Stellite hard-faced body seat, disc seating face made of
Stellite hard-faced 13 % chrome steel, with graphite gasket. Available in carbon
steel and alloy steel.
Applications:
Refineries, power stations, general industry and process engineering. For water,
steam, oil, gas and non-aggressive fluids. Other fluids on request.
http://shop.ksb.com/catalog/k0/en/product/ES000481
800 - 4500
1⁄4- 2
≥ 0 - ≤ +816
