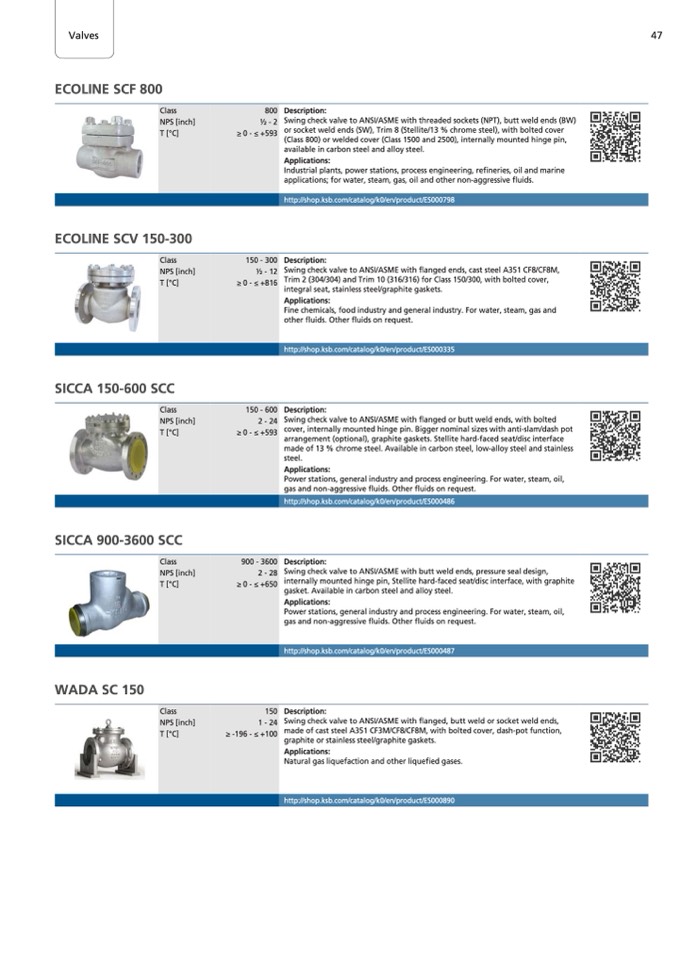

Valves

Valves

ECOLINE SCF 800

Class

NPS [inch]

T [°C]

ECOLINE SCV 150-300

Class

NPS [inch]

T [°C]

SICCA 150-600 SCC

Class

NPS [inch]

T [°C]

SICCA 900-3600 SCC

47

WADA SC 150

Class

NPS [inch]

T [°C]

Class

NPS [inch]

T [°C]

800

1⁄2- 2

≥ 0 - ≤ +593

150 - 300

1⁄2 - 12

≥ 0 - ≤ +816

150 - 600

2 - 24

≥ 0 - ≤ +593

900 - 3600

2 - 28

≥ 0 - ≤ +650

150

1 - 24

≥ -196 - ≤ +100

Description:

Swing check valve to ANSI/ASME with threaded sockets (NPT), butt weld ends (BW)

or socket weld ends (SW), Trim 8 (Stellite/13 % chrome steel), with bolted cover

(Class 800) or welded cover (Class 1500 and 2500), internally mounted hinge pin,

available in carbon steel and alloy steel.

Applications:

Industrial plants, power stations, process engineering, refineries, oil and marine

applications; for water, steam, gas, oil and other non-aggressive fluids.

http://shop.ksb.com/catalog/k0/en/product/ES000798

Description:

Swing check valve to ANSI/ASME with flanged ends, cast steel A351 CF8/CF8M,

Trim 2 (304/304) and Trim 10 (316/316) for Class 150/300, with bolted cover,

integral seat, stainless steel/graphite gaskets.

Applications:

Fine chemicals, food industry and general industry. For water, steam, gas and

other fluids. Other fluids on request.

http://shop.ksb.com/catalog/k0/en/product/ES000335

Description:

Swing check valve to ANSI/ASME with flanged or butt weld ends, with bolted

cover, internally mounted hinge pin. Bigger nominal sizes with anti-slam/dash pot

arrangement (optional), graphite gaskets. Stellite hard-faced seat/disc interface

made of 13 % chrome steel. Available in carbon steel, low-alloy steel and stainless

steel.

Applications:

Power stations, general industry and process engineering. For water, steam, oil,

gas and non-aggressive fluids. Other fluids on request.

http://shop.ksb.com/catalog/k0/en/product/ES000486

Description:

Swing check valve to ANSI/ASME with butt weld ends, pressure seal design,

internally mounted hinge pin, Stellite hard-faced seat/disc interface, with graphite

gasket. Available in carbon steel and alloy steel.

Applications:

Power stations, general industry and process engineering. For water, steam, oil,

gas and non-aggressive fluids. Other fluids on request.

http://shop.ksb.com/catalog/k0/en/product/ES000487

Description:

Swing check valve to ANSI/ASME with flanged, butt weld or socket weld ends,

made of cast steel A351 CF3M/CF8/CF8M, with bolted cover, dash-pot function,

graphite or stainless steel/graphite gaskets.

Applications:

Natural gas liquefaction and other liquefied gases.

http://shop.ksb.com/catalog/k0/en/product/ES000890
