50

Valves

Valves

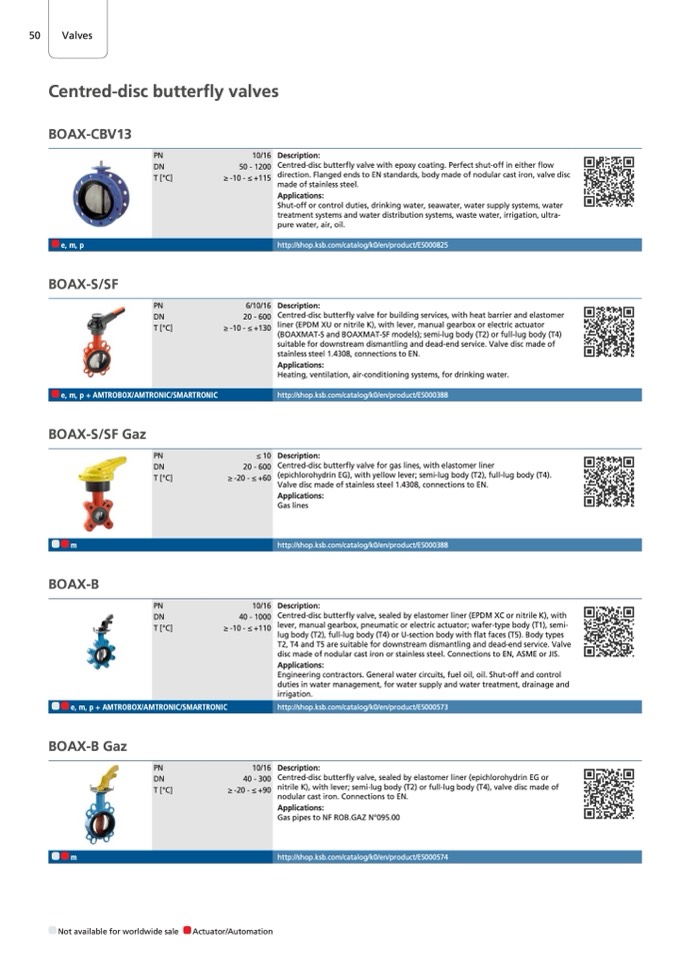

Centred-disc butterfly valves

BOAX-CBV13

e, m, p

BOAX-S/SF

PN

DN

T [°C]

PN

DN

T [°C]

10/16

50 - 1200

≥ -10 - ≤ +115

6/10/16

20 - 600

≥ -10 - ≤ +130

≤ 10

20 - 600

≥ -20 - ≤ +60

10/16

40 - 1000

≥ -10 - ≤ +110

Description:

Centred-disc butterfly valve with epoxy coating. Perfect shut-off in either flow

direction. Flanged ends to EN standards, body made of nodular cast iron, valve disc

made of stainless steel.

Applications:

Shut-off or control duties, drinking water, seawater, water supply systems, water

treatment systems and water distribution systems, waste water, irrigation, ultra-

pure water, air, oil.

http://shop.ksb.com/catalog/k0/en/product/ES000825

Description:

Centred-disc butterfly valve for building services, with heat barrier and elastomer

liner (EPDM XU or nitrile K), with lever, manual gearbox or electric actuator

(BOAXMAT-S and BOAXMAT-SF models); semi-lug body (T2) or full-lug body (T4)

suitable for downstream dismantling and dead-end service. Valve disc made of

stainless steel 1.4308, connections to EN.

Applications:

Heating, ventilation, air-conditioning systems, for drinking water.

http://shop.ksb.com/catalog/k0/en/product/ES000388

Description:

Centred-disc butterfly valve for gas lines, with elastomer liner

(epichlorohydrin EG), with yellow lever; semi-lug body (T2), full-lug body (T4).

Valve disc made of stainless steel 1.4308, connections to EN.

Applications:

Gas lines

http://shop.ksb.com/catalog/k0/en/product/ES000388

Description:

Centred-disc butterfly valve, sealed by elastomer liner (EPDM XC or nitrile K), with

lever, manual gearbox, pneumatic or electric actuator; wafer-type body (T1), semi-

lug body (T2), full-lug body (T4) or U-section body with flat faces (T5). Body types

T2, T4 and T5 are suitable for downstream dismantling and dead-end service. Valve

disc made of nodular cast iron or stainless steel. Connections to EN, ASME or JIS.

Applications:

Engineering contractors. General water circuits, fuel oil, oil. Shut-off and control

duties in water management, for water supply and water treatment, drainage and

irrigation.

http://shop.ksb.com/catalog/k0/en/product/ES000573

Description:

Centred-disc butterfly valve, sealed by elastomer liner (epichlorohydrin EG or

nitrile K), with lever; semi-lug body (T2) or full-lug body (T4), valve disc made of

nodular cast iron. Connections to EN.

Applications:

Gas pipes to NF ROB.GAZ N°095.00

http://shop.ksb.com/catalog/k0/en/product/ES000574

e, m, p + AMTROBOX/AMTRONIC/SMARTRONIC

BOAX-S/SF Gaz

m

BOAX-B

e, m, p + AMTROBOX/AMTRONIC/SMARTRONIC

BOAX-B Gaz

m

Not available for worldwide sale

Actuator/Automation

PN

DN

T [°C]

PN

DN

T [°C]

PN

DN

T [°C]

10/16

40 - 300

≥ -20 - ≤ +90
