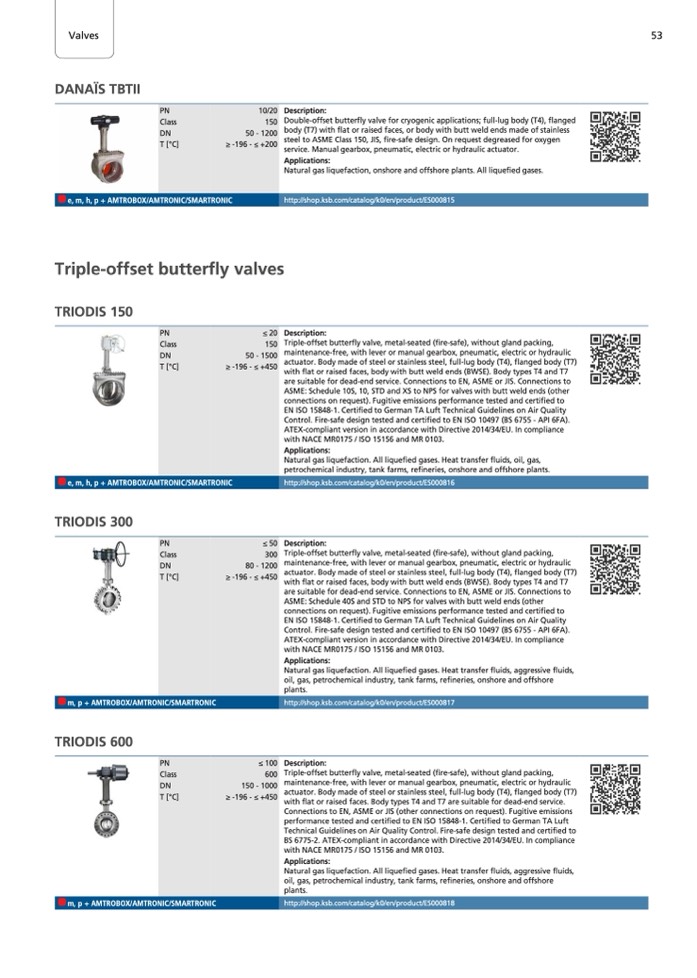

Valves
Valves
DANAÏS TBTII
53
e, m, h, p + AMTROBOX/AMTRONIC/SMARTRONIC
m, p + AMTROBOX/AMTRONIC/SMARTRONIC
TRIODIS 600
m, p + AMTROBOX/AMTRONIC/SMARTRONIC
PN
10/20
Class
150
DN
50 - 1200
T [°C]
≥ -196 - ≤ +200
Description:
Double-offset butterfly valve for cryogenic applications; full-lug body (T4), flanged
body (T7) with flat or raised faces, or body with butt weld ends made of stainless
steel to ASME Class 150, JIS, fire-safe design. On request degreased for oxygen
service. Manual gearbox, pneumatic, electric or hydraulic actuator.
Applications:
Natural gas liquefaction, onshore and offshore plants. All liquefied gases.
http://shop.ksb.com/catalog/k0/en/product/ES000815
Triple-offset butterfly valves
TRIODIS 150
e, m, h, p + AMTROBOX/AMTRONIC/SMARTRONIC
TRIODIS 300
PN
≤ 20
Class
150
Description:
Triple-offset butterfly valve, metal-seated (fire-safe), without gland packing,
maintenance-free, with lever or manual gearbox, pneumatic, electric or hydraulic
actuator. Body made of steel or stainless steel, full-lug body (T4), flanged body (T7)
with flat or raised faces, body with butt weld ends (BWSE). Body types T4 and T7
are suitable for dead-end service. Connections to EN, ASME or JIS. Connections to
ASME: Schedule 10S, 10, STD and XS to NPS for valves with butt weld ends (other
connections on request). Fugitive emissions performance tested and certified to
EN ISO 15848-1. Certified to German TA Luft Technical Guidelines on Air Quality
Control. Fire-safe design tested and certified to EN ISO 10497 (BS 6755 - API 6FA).
ATEX-compliant version in accordance with Directive 2014/34/EU. In compliance
with NACE MR0175 / ISO 15156 and MR 0103.
Applications:
Natural gas liquefaction. All liquefied gases. Heat transfer fluids, oil, gas,
petrochemical industry, tank farms, refineries, onshore and offshore plants.
http://shop.ksb.com/catalog/k0/en/product/ES000816
Description:
Triple-offset butterfly valve, metal-seated (fire-safe), without gland packing,
maintenance-free, with lever or manual gearbox, pneumatic, electric or hydraulic
actuator. Body made of steel or stainless steel, full-lug body (T4), flanged body (T7)
with flat or raised faces, body with butt weld ends (BWSE). Body types T4 and T7
are suitable for dead-end service. Connections to EN, ASME or JIS. Connections to
ASME: Schedule 40S and STD to NPS for valves with butt weld ends (other
connections on request). Fugitive emissions performance tested and certified to
EN ISO 15848-1. Certified to German TA Luft Technical Guidelines on Air Quality
Control. Fire-safe design tested and certified to EN ISO 10497 (BS 6755 - API 6FA).
ATEX-compliant version in accordance with Directive 2014/34/EU. In compliance
with NACE MR0175 / ISO 15156 and MR 0103.
Applications:
Natural gas liquefaction. All liquefied gases. Heat transfer fluids, aggressive fluids,
oil, gas, petrochemical industry, tank farms, refineries, onshore and offshore
plants.
http://shop.ksb.com/catalog/k0/en/product/ES000817
Description:
Triple-offset butterfly valve, metal-seated (fire-safe), without gland packing,
maintenance-free, with lever or manual gearbox, pneumatic, electric or hydraulic
actuator. Body made of steel or stainless steel, full-lug body (T4), flanged body (T7)
with flat or raised faces. Body types T4 and T7 are suitable for dead-end service.
Connections to EN, ASME or JIS (other connections on request). Fugitive emissions
performance tested and certified to EN ISO 15848-1. Certified to German TA Luft
Technical Guidelines on Air Quality Control. Fire-safe design tested and certified to
BS 6775-2. ATEX-compliant in accordance with Directive 2014/34/EU. In compliance
with NACE MR0175 / ISO 15156 and MR 0103.
Applications:
Natural gas liquefaction. All liquefied gases. Heat transfer fluids, aggressive fluids,
oil, gas, petrochemical industry, tank farms, refineries, onshore and offshore
plants.
http://shop.ksb.com/catalog/k0/en/product/ES000818
DN
T [°C]
50 - 1500
≥ -196 - ≤ +450
PN
Class
300
DN
T [°C]
80 - 1200
≥ -196 - ≤ +450
PN
Class
600
DN
T [°C]
150 - 1000
≥ -196 - ≤ +450
≤ 50
≤ 100
