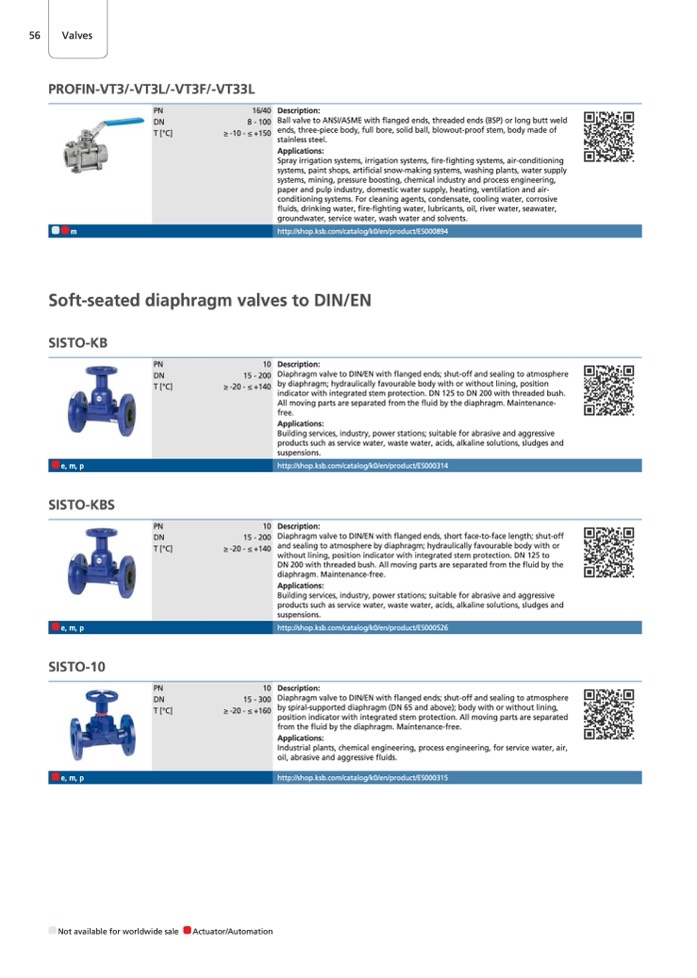

56
Valves
Valves
PROFIN-VT3/-VT3L/-VT3F/-VT33L
m
PN
DN
T [°C]
16/40
8 - 100
≥ -10 - ≤ +150
Description:
Ball valve to ANSI/ASME with flanged ends, threaded ends (BSP) or long butt weld
ends, three-piece body, full bore, solid ball, blowout-proof stem, body made of
stainless steel.
Applications:
Spray irrigation systems, irrigation systems, fire-fighting systems, air-conditioning
systems, paint shops, artificial snow-making systems, washing plants, water supply
systems, mining, pressure boosting, chemical industry and process engineering,
paper and pulp industry, domestic water supply, heating, ventilation and air-
conditioning systems. For cleaning agents, condensate, cooling water, corrosive
fluids, drinking water, fire-fighting water, lubricants, oil, river water, seawater,
groundwater, service water, wash water and solvents.
http://shop.ksb.com/catalog/k0/en/product/ES000894
Soft-seated diaphragm valves to DIN/EN
SISTO-KB
e, m, p
SISTO-KBS
e, m, p
SISTO-10
e, m, p
≥ -20
Not available for worldwide sale
Actuator/Automation
PN
DN
T [°C]
PN
DN
T [°C]
PN
DN
T [°C]
≥ -20
10
15 - 200
- ≤ +140
10
15 - 200
- ≤ +140
10
15 - 300
- ≤ +160
Description:
Diaphragm valve to DIN/EN with flanged ends; shut-off and sealing to atmosphere
by diaphragm; hydraulically favourable body with or without lining, position
indicator with integrated stem protection. DN 125 to DN 200 with threaded bush.
All moving parts are separated from the fluid by the diaphragm. Maintenance-
free.
Applications:
Building services, industry, power stations; suitable for abrasive and aggressive
products such as service water, waste water, acids, alkaline solutions, sludges and
suspensions.
http://shop.ksb.com/catalog/k0/en/product/ES000314
Description:
Diaphragm valve to DIN/EN with flanged ends, short face-to-face length; shut-off
and sealing to atmosphere by diaphragm; hydraulically favourable body with or
without lining, position indicator with integrated stem protection. DN 125 to
DN 200 with threaded bush. All moving parts are separated from the fluid by the
diaphragm. Maintenance-free.
Applications:
Building services, industry, power stations; suitable for abrasive and aggressive
products such as service water, waste water, acids, alkaline solutions, sludges and
suspensions.
http://shop.ksb.com/catalog/k0/en/product/ES000526
Description:
Diaphragm valve to DIN/EN with flanged ends; shut-off and sealing to atmosphere
by spiral-supported diaphragm (DN 65 and above); body with or without lining,
position indicator with integrated stem protection. All moving parts are separated
from the fluid by the diaphragm. Maintenance-free.
Applications:
Industrial plants, chemical engineering, process engineering, for service water, air,
oil, abrasive and aggressive fluids.
http://shop.ksb.com/catalog/k0/en/product/ES000315
≥ -20
