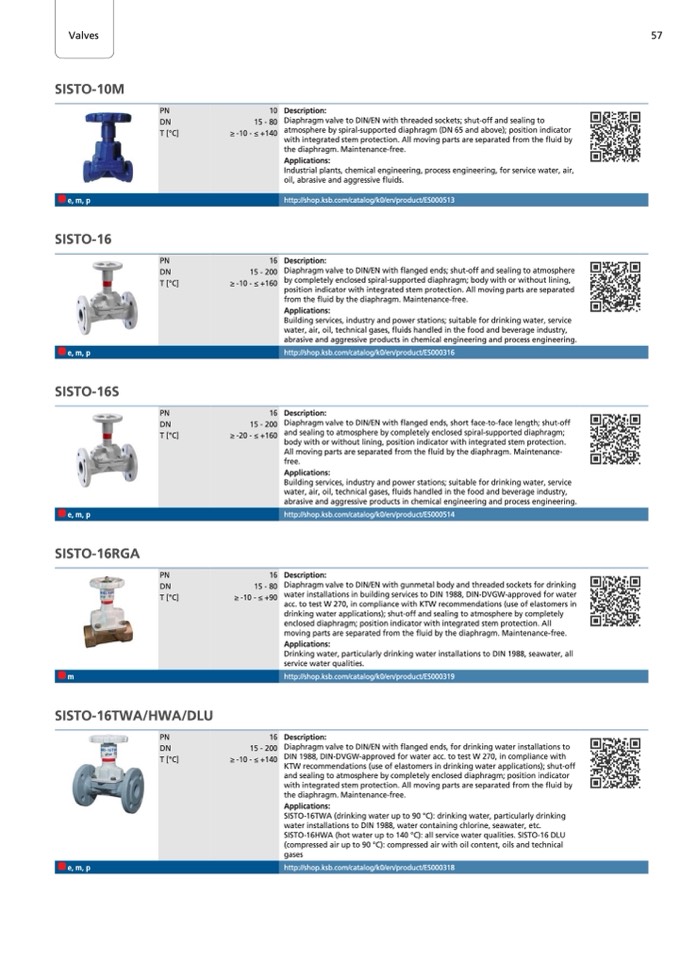

Valves

Valves

SISTO-10M

e, m, p

SISTO-16

e, m, p

SISTO-16S

e, m, p

SISTO-16RGA

m

57

SISTO-16TWA/HWA/DLU

16

15 - 80

≥ -10 - ≤ +90

16

15 - 200

≥ -10 - ≤ +140

e, m, p

PN

DN

T [°C]

PN

DN

T [°C]

PN

DN

T [°C]

PN

DN

T [°C]

≥ -10

10

15 - 80

- ≤ +140

16

15 - 200

- ≤ +160

16

15 - 200

- ≤ +160

Description:

Diaphragm valve to DIN/EN with threaded sockets; shut-off and sealing to

atmosphere by spiral-supported diaphragm (DN 65 and above); position indicator

with integrated stem protection. All moving parts are separated from the fluid by

the diaphragm. Maintenance-free.

Applications:

Industrial plants, chemical engineering, process engineering, for service water, air,

oil, abrasive and aggressive fluids.

http://shop.ksb.com/catalog/k0/en/product/ES000513

Description:

Diaphragm valve to DIN/EN with flanged ends; shut-off and sealing to atmosphere

by completely enclosed spiral-supported diaphragm; body with or without lining,

position indicator with integrated stem protection. All moving parts are separated

from the fluid by the diaphragm. Maintenance-free.

Applications:

Building services, industry and power stations; suitable for drinking water, service

water, air, oil, technical gases, fluids handled in the food and beverage industry,

abrasive and aggressive products in chemical engineering and process engineering.

http://shop.ksb.com/catalog/k0/en/product/ES000316

Description:

Diaphragm valve to DIN/EN with flanged ends, short face-to-face length; shut-off

and sealing to atmosphere by completely enclosed spiral-supported diaphragm;

body with or without lining, position indicator with integrated stem protection.

All moving parts are separated from the fluid by the diaphragm. Maintenance-

free.

Applications:

Building services, industry and power stations; suitable for drinking water, service

water, air, oil, technical gases, fluids handled in the food and beverage industry,

abrasive and aggressive products in chemical engineering and process engineering.

http://shop.ksb.com/catalog/k0/en/product/ES000514

Description:

Diaphragm valve to DIN/EN with gunmetal body and threaded sockets for drinking

water installations in building services to DIN 1988, DIN-DVGW-approved for water

acc. to test W 270, in compliance with KTW recommendations (use of elastomers in

drinking water applications); shut-off and sealing to atmosphere by completely

enclosed diaphragm; position indicator with integrated stem protection. All

moving parts are separated from the fluid by the diaphragm. Maintenance-free.

Applications:

Drinking water, particularly drinking water installations to DIN 1988, seawater, all

service water qualities.

http://shop.ksb.com/catalog/k0/en/product/ES000319

Description:

Diaphragm valve to DIN/EN with flanged ends, for drinking water installations to

DIN 1988, DIN-DVGW-approved for water acc. to test W 270, in compliance with

KTW recommendations (use of elastomers in drinking water applications); shut-off

and sealing to atmosphere by completely enclosed diaphragm; position indicator

with integrated stem protection. All moving parts are separated from the fluid by

the diaphragm. Maintenance-free.

Applications:

SISTO-16TWA (drinking water up to 90 °C): drinking water, particularly drinking

water installations to DIN 1988, water containing chlorine, seawater, etc.

SISTO-16HWA (hot water up to 140 °C): all service water qualities. SISTO-16 DLU

(compressed air up to 90 °C): compressed air with oil content, oils and technical

gases

http://shop.ksb.com/catalog/k0/en/product/ES000318

PN

DN

T [°C]

≥ -10

≥ -20
