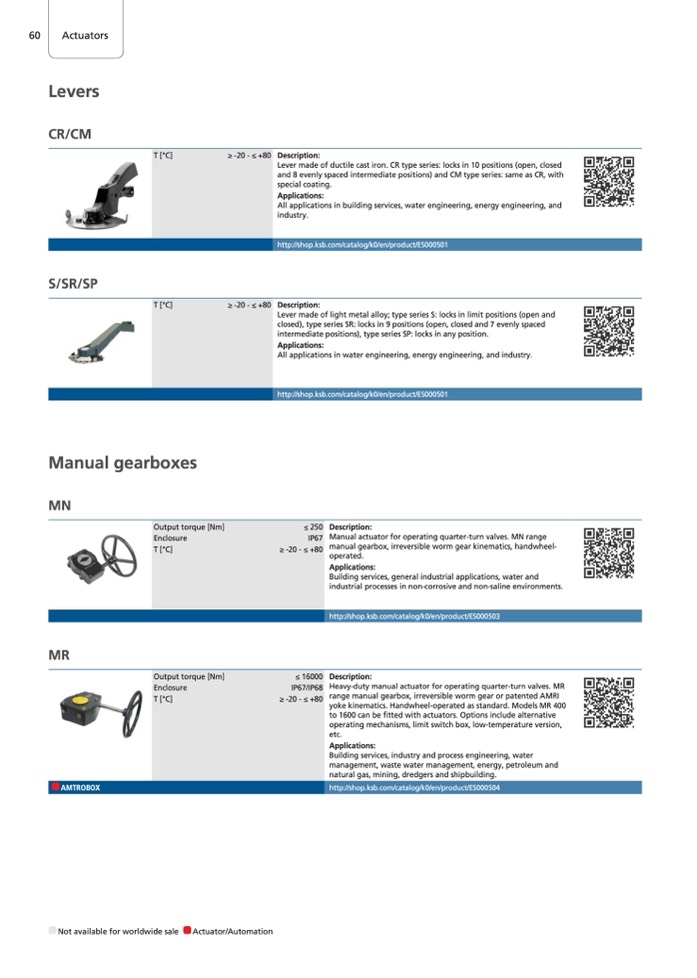

60

Actuators

Actuators

Levers

CR/CM

S/SR/SP

Manual gearboxes

MN

MR

AMTROBOX

≤ 250

≥ -20 - ≤ +80

Not available for worldwide sale

Actuator/Automation

T [°C]

T [°C]

≥ -20 - ≤ +80

≥ -20 - ≤ +80

Description:

Lever made of ductile cast iron. CR type series: locks in 10 positions (open, closed

and 8 evenly spaced intermediate positions) and CM type series: same as CR, with

special coating.

Applications:

All applications in building services, water engineering, energy engineering, and

industry.

http://shop.ksb.com/catalog/k0/en/product/ES000501

Description:

Lever made of light metal alloy; type series S: locks in limit positions (open and

closed), type series SR: locks in 9 positions (open, closed and 7 evenly spaced

intermediate positions), type series SP: locks in any position.

Applications:

All applications in water engineering, energy engineering, and industry.

http://shop.ksb.com/catalog/k0/en/product/ES000501

Description:

Manual actuator for operating quarter-turn valves. MN range

manual gearbox, irreversible worm gear kinematics, handwheel-

operated.

Applications:

Building services, general industrial applications, water and

industrial processes in non-corrosive and non-saline environments.

http://shop.ksb.com/catalog/k0/en/product/ES000503

Description:

Heavy-duty manual actuator for operating quarter-turn valves. MR

range manual gearbox, irreversible worm gear or patented AMRI

yoke kinematics. Handwheel-operated as standard. Models MR 400

to 1600 can be fitted with actuators. Options include alternative

operating mechanisms, limit switch box, low-temperature version,

etc.

Applications:

Building services, industry and process engineering, water

management, waste water management, energy, petroleum and

natural gas, mining, dredgers and shipbuilding.

http://shop.ksb.com/catalog/k0/en/product/ES000504

Output torque [Nm]

Enclosure

IP67

T [°C]

Output torque [Nm]

Enclosure

IP67/IP68

T [°C]

≤ 16000

≥ -20 - ≤ +80
