Automation

Automation

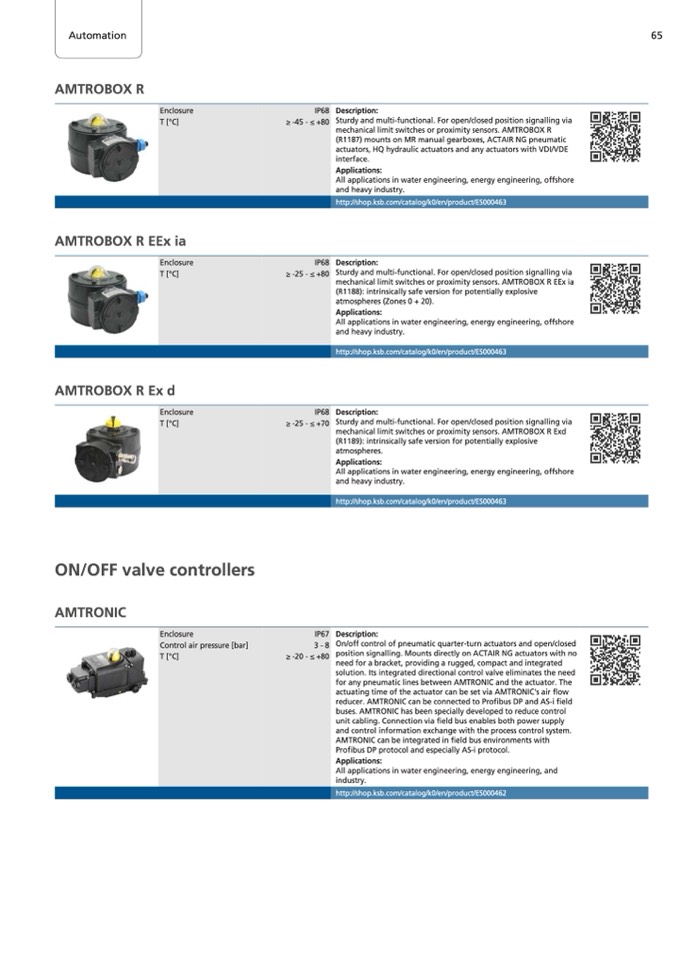

AMTROBOX R

65

AMTROBOX R EEx ia

Enclosure

T [°C]

AMTROBOX R Ex d

Enclosure

T [°C]

ON/OFF valve controllers

AMTRONIC

Enclosure

Control air pressure [bar]

T [°C]

IP67

3 - 8

≥ -20 - ≤ +80

Enclosure

T [°C]

IP68

≥ -45 - ≤ +80

IP68

≥ -25 - ≤ +80

IP68

≥ -25 - ≤ +70

Description:

Sturdy and multi-functional. For open/closed position signalling via

mechanical limit switches or proximity sensors. AMTROBOX R

(R1187) mounts on MR manual gearboxes, ACTAIR NG pneumatic

actuators, HQ hydraulic actuators and any actuators with VDI/VDE

interface.

Applications:

All applications in water engineering, energy engineering, offshore

and heavy industry.

http://shop.ksb.com/catalog/k0/en/product/ES000463

Description:

Sturdy and multi-functional. For open/closed position signalling via

mechanical limit switches or proximity sensors. AMTROBOX R EEx ia

(R1188): intrinsically safe version for potentially explosive

atmospheres (Zones 0 + 20).

Applications:

All applications in water engineering, energy engineering, offshore

and heavy industry.

http://shop.ksb.com/catalog/k0/en/product/ES000463

Description:

Sturdy and multi-functional. For open/closed position signalling via

mechanical limit switches or proximity sensors. AMTROBOX R Exd

(R1189): intrinsically safe version for potentially explosive

atmospheres.

Applications:

All applications in water engineering, energy engineering, offshore

and heavy industry.

http://shop.ksb.com/catalog/k0/en/product/ES000463

Description:

On/off control of pneumatic quarter-turn actuators and open/closed

position signalling. Mounts directly on ACTAIR NG actuators with no

need for a bracket, providing a rugged, compact and integrated

solution. Its integrated directional control valve eliminates the need

for any pneumatic lines between AMTRONIC and the actuator. The

actuating time of the actuator can be set via AMTRONIC's air flow

reducer. AMTRONIC can be connected to Profibus DP and AS-i field

buses. AMTRONIC has been specially developed to reduce control

unit cabling. Connection via field bus enables both power supply

and control information exchange with the process control system.

AMTRONIC can be integrated in field bus environments with

Profibus DP protocol and especially AS-i protocol.

Applications:

All applications in water engineering, energy engineering, and

industry.

http://shop.ksb.com/catalog/k0/en/product/ES000462
