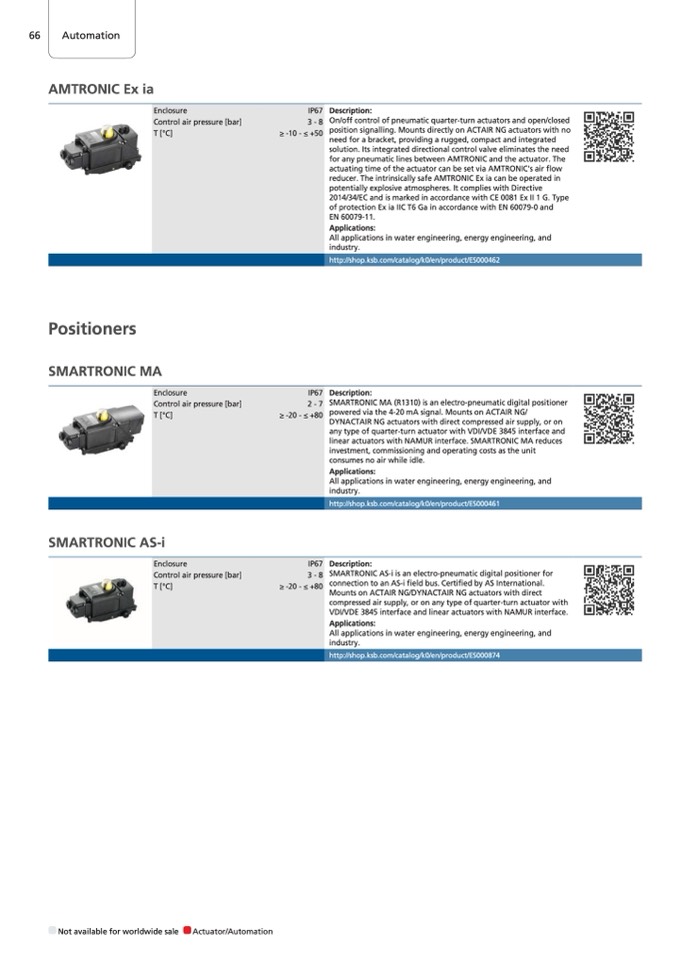

66

Automation

Automation

AMTRONIC Ex ia

Enclosure

Control air pressure [bar]

T [°C]

Positioners

SMARTRONIC MA

Enclosure

Control air pressure [bar]

T [°C]

SMARTRONIC AS-i

Enclosure

Control air pressure [bar]

T [°C]

IP67

2 - 7

≥ -20 - ≤ +80

IP67

3 - 8

≥ -20 - ≤ +80

Not available for worldwide sale

Actuator/Automation

IP67

3 - 8

≥ -10 - ≤ +50

Description:

On/off control of pneumatic quarter-turn actuators and open/closed

position signalling. Mounts directly on ACTAIR NG actuators with no

need for a bracket, providing a rugged, compact and integrated

solution. Its integrated directional control valve eliminates the need

for any pneumatic lines between AMTRONIC and the actuator. The

actuating time of the actuator can be set via AMTRONIC's air flow

reducer. The intrinsically safe AMTRONIC Ex ia can be operated in

potentially explosive atmospheres. It complies with Directive

2014/34/EC and is marked in accordance with CE 0081 Ex II 1 G. Type

of protection Ex ia IIC T6 Ga in accordance with EN 60079-0 and

EN 60079-11.

Applications:

All applications in water engineering, energy engineering, and

industry.

http://shop.ksb.com/catalog/k0/en/product/ES000462

Description:

SMARTRONIC MA (R1310) is an electro-pneumatic digital positioner

powered via the 4-20 mA signal. Mounts on ACTAIR NG/

DYNACTAIR NG actuators with direct compressed air supply, or on

any type of quarter-turn actuator with VDI/VDE 3845 interface and

linear actuators with NAMUR interface. SMARTRONIC MA reduces

investment, commissioning and operating costs as the unit

consumes no air while idle.

Applications:

All applications in water engineering, energy engineering, and

industry.

http://shop.ksb.com/catalog/k0/en/product/ES000461

Description:

SMARTRONIC AS-i is an electro-pneumatic digital positioner for

connection to an AS-i field bus. Certified by AS International.

Mounts on ACTAIR NG/DYNACTAIR NG actuators with direct

compressed air supply, or on any type of quarter-turn actuator with

VDI/VDE 3845 interface and linear actuators with NAMUR interface.

Applications:

All applications in water engineering, energy engineering, and

industry.

http://shop.ksb.com/catalog/k0/en/product/ES000874
