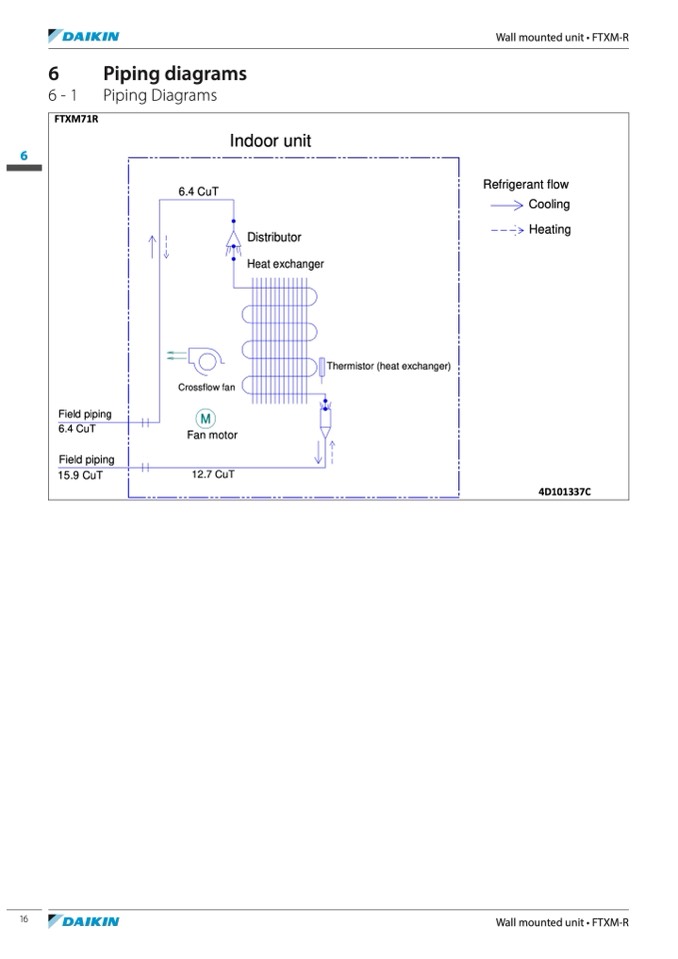

Piping diagrams

Piping Diagrams

FTXM71R

Indoor unit

Refrigerant flow

Cooling

Heating

Field piping

6.4 CuT

Field piping

15.9 CuT

4D101337C

6.4 CuT

Distributor

Heat exchanger

Crossflow fan

M

Fan motor

12.7 CuT

Thermistor (heat exchanger)
